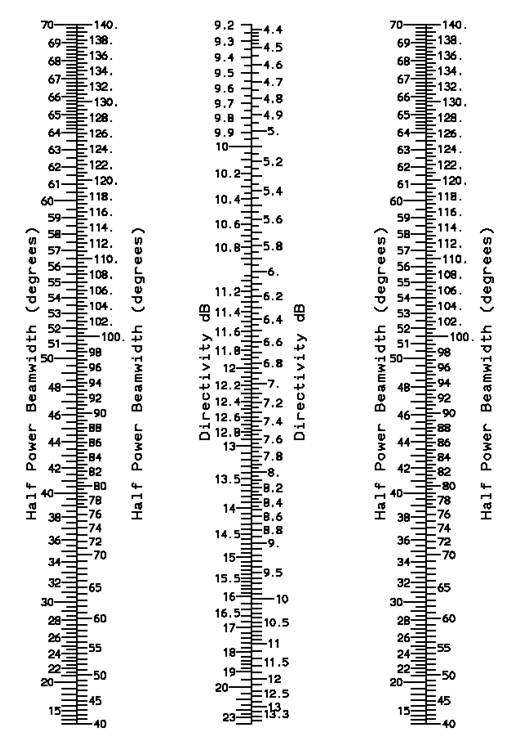

When the wide beam antenna has unequal beamwidths in the two planes, an elliptical approximation is used to compute directivity. The nomograph has two sets of scales and you need to either use the left or right side scales with the corresponding scale in the middle line. Download the program widedir (Linux version) to perform these computations in a DOS window.
